OUR PRODUCTS

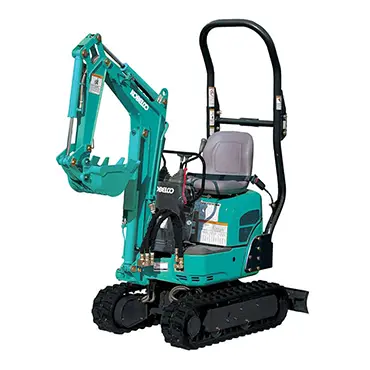

The super-compact 1 tonne Kobelco SK008 can enter and work efficiently in even narrower passages than ever before, with a crawler width of 68cm with its undercarriage fully retracted. The tail swing overhang is only 30.5cm over the tracks, which allows for uninterrupted work, even in close proximity to walls. The ROPS structure is hinged and foldable, allowing easy access even when height clearance is restricted.

Despite the small compact body size, the SK008 delivers exceptional body balance. The outer flange-type lower rollers also help ensure high lateral stability. The reinforced structure can handle hard work and provides exceptional stability for the operator while working.

Features

• This super mini excavator is the smallest in its 0.8 tonne class.
• Perfect for residential areas with space restrictions.
• The 7.7 kW high-output engine delivers 10.5 kN of powerful bucket digging force – top of its class.
• Standard 4YR / 4,000HR Full Machine Warranty.

Specifications

• Length, Width & Height: 2.6 x 0.68 x 2.3 m (Retracted)
• Operating Weight: 1,035 kg
• Max. Digging Depth: 1.5 m
• Max. Digging Reach: 2.83 m
• Bucket Digging Force: 10.5 kN
• Arm Crowding Force: –
• Fuel Tank: 9.7 L
• Hydraulic Oil Tank: 5.7 (10.7) L
• Rated Power Output: 7.7 kW
• Rated Torque: 31.5 Nm
• Max. Pump Flow: –
• Standard Auxiliary: N&B Piping
