HYDREMA Backhoe 900G Series

Hydrema’s 900G series of backhoe loaders represent a high-performance and versatile solution for earthmoving and excavation work. Created with a focus on quality, efficiency and durability, these backhoe loaders are ideal for a wide range of applications. The range includes backhoe loaders in different sizes and configurations to meet the varying needs of the construction industry.

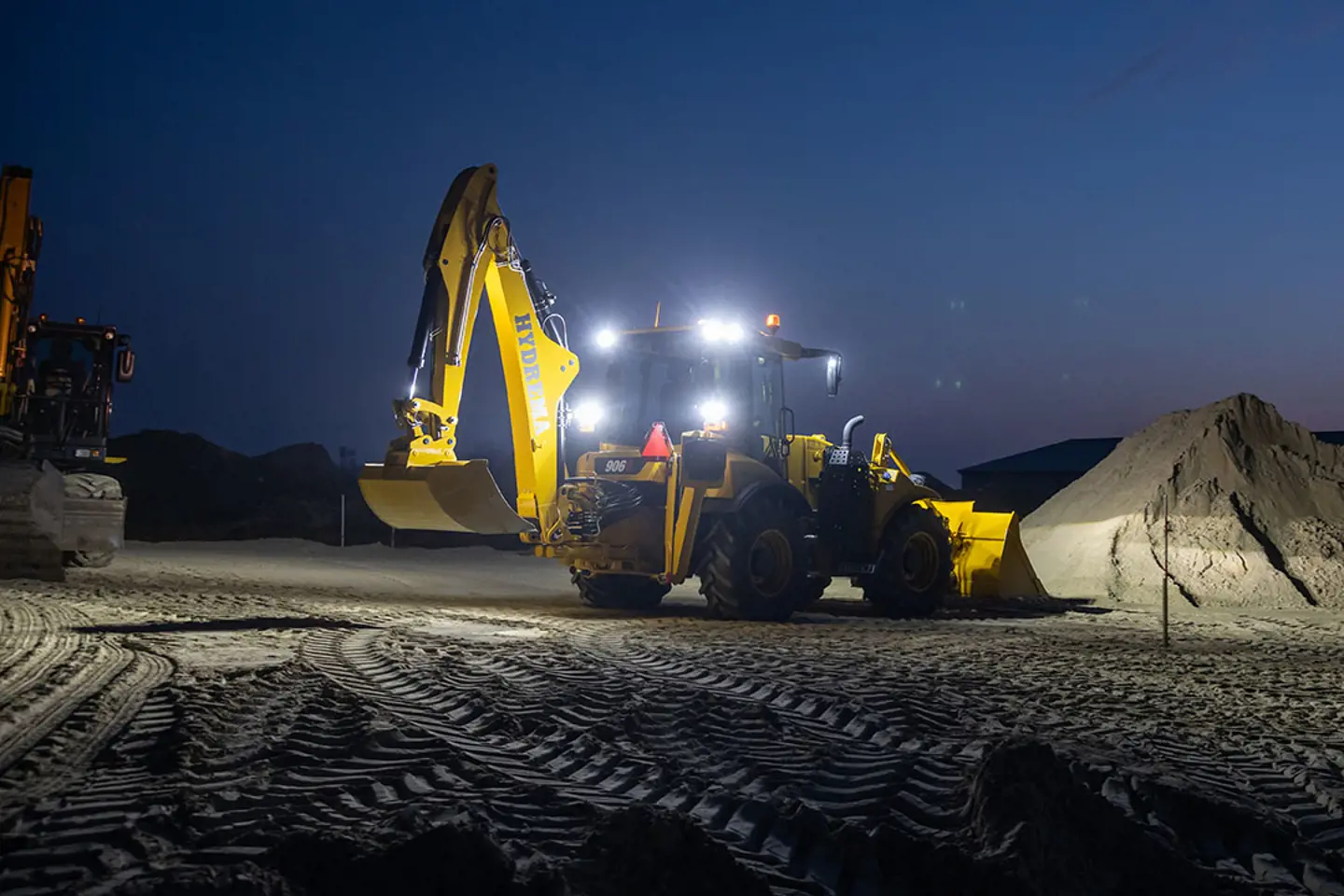

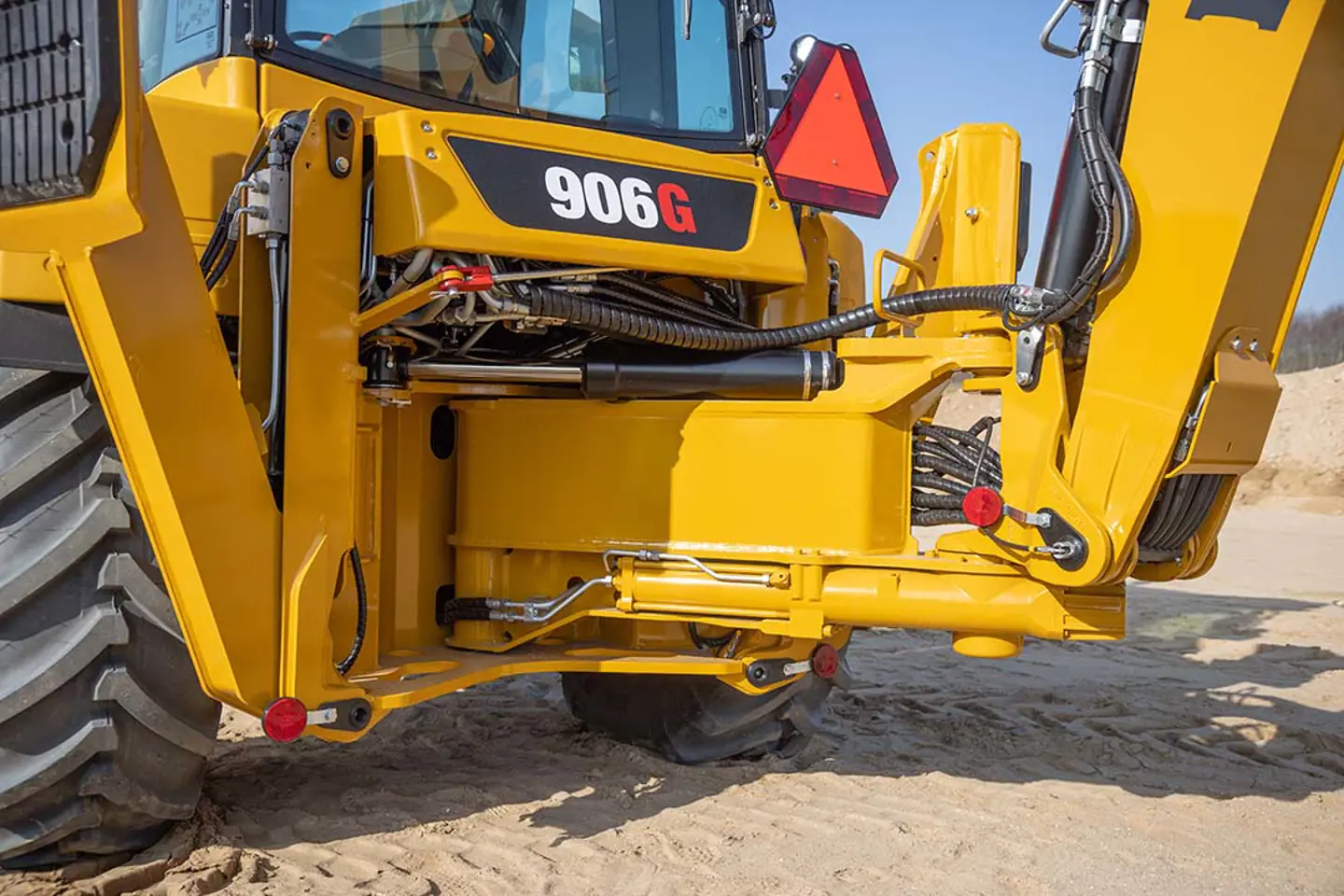

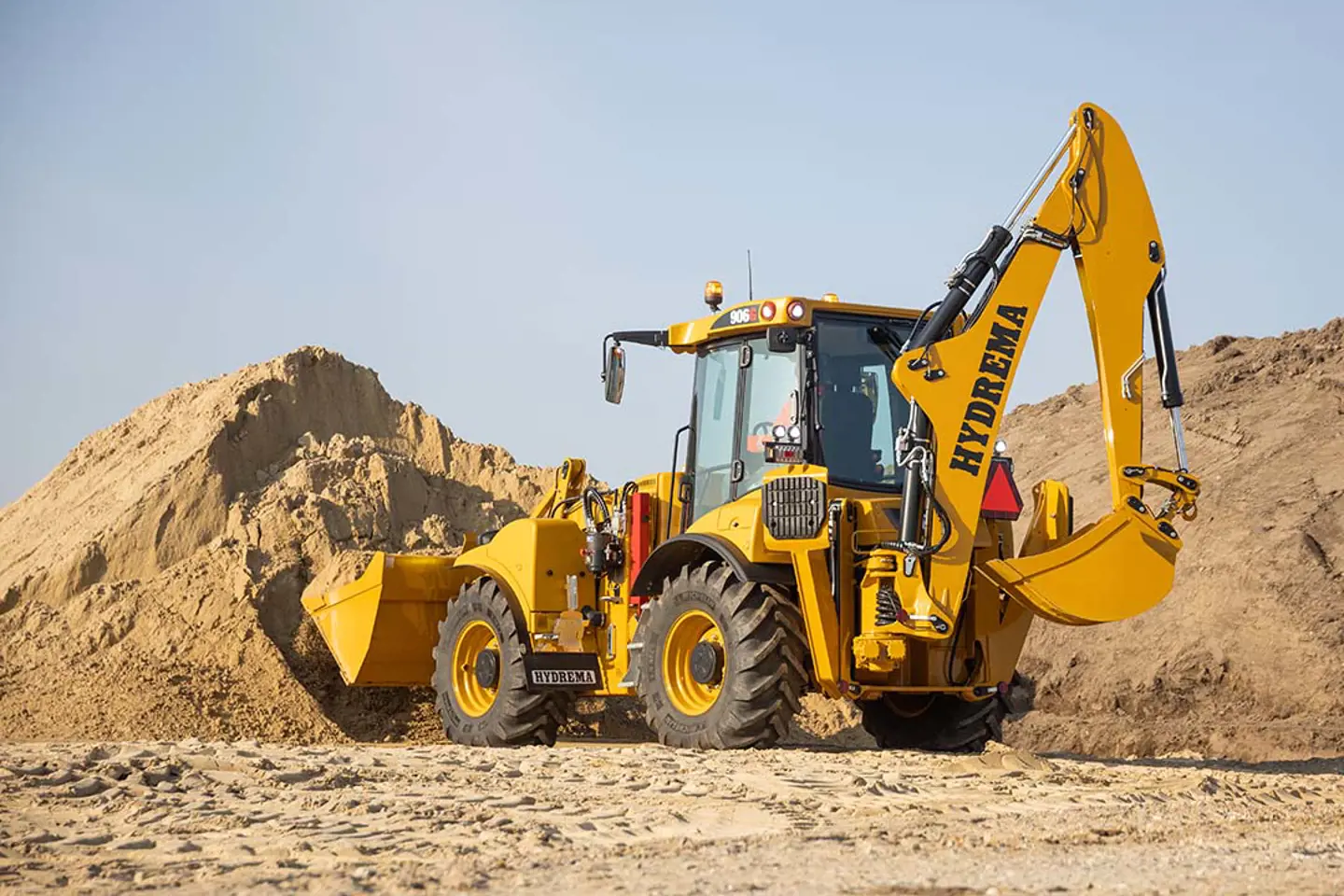

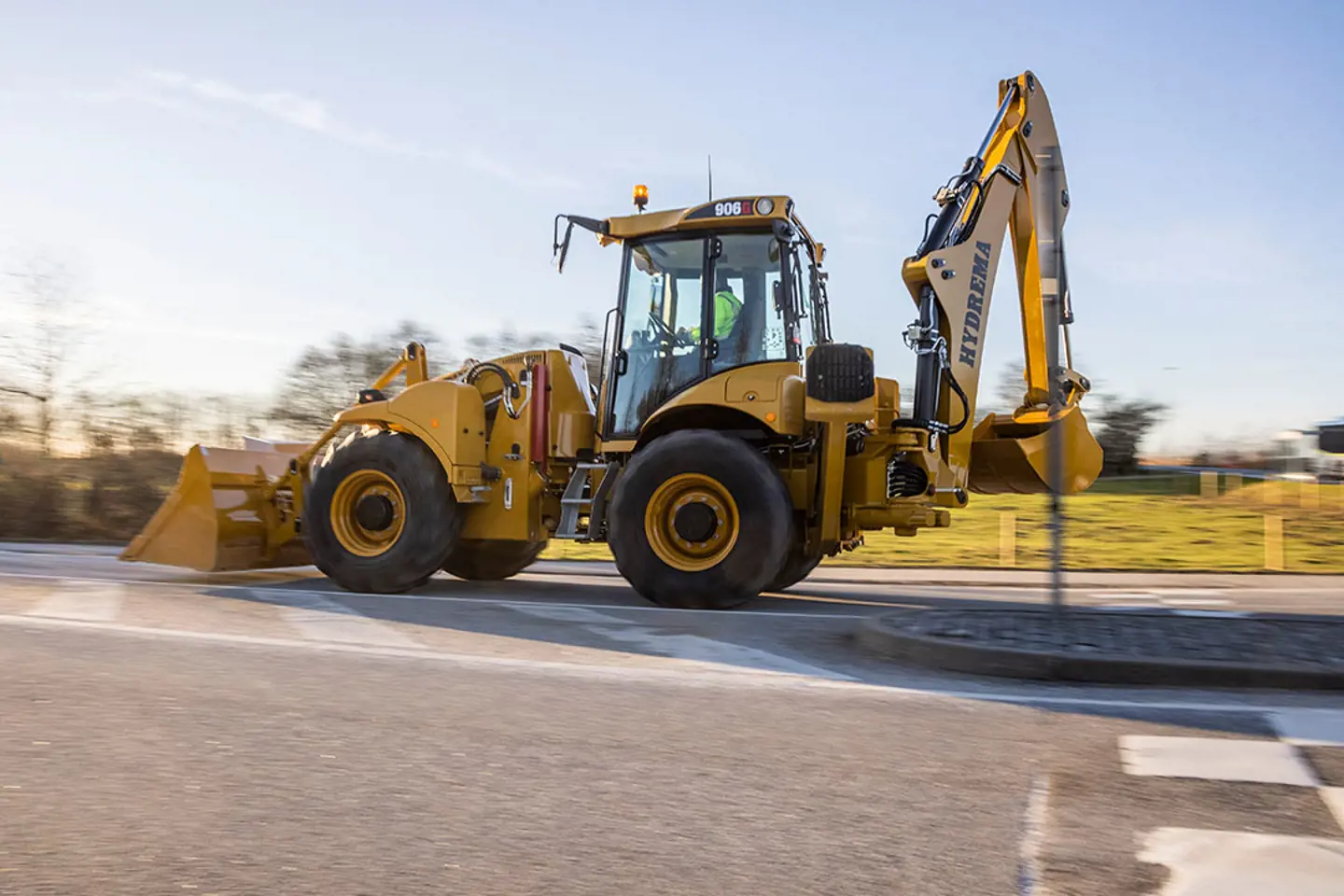

Features 906G

• This backhoe loader is equipped with an impressive working range of 280 degrees thanks to hydraulic sideshift.
• Although smaller in size compared to the 926G/928G models, it’s still a versatile and reliable solution.
• With a powerful 122 hp engine, it delivers solid performance for a variety of tasks.

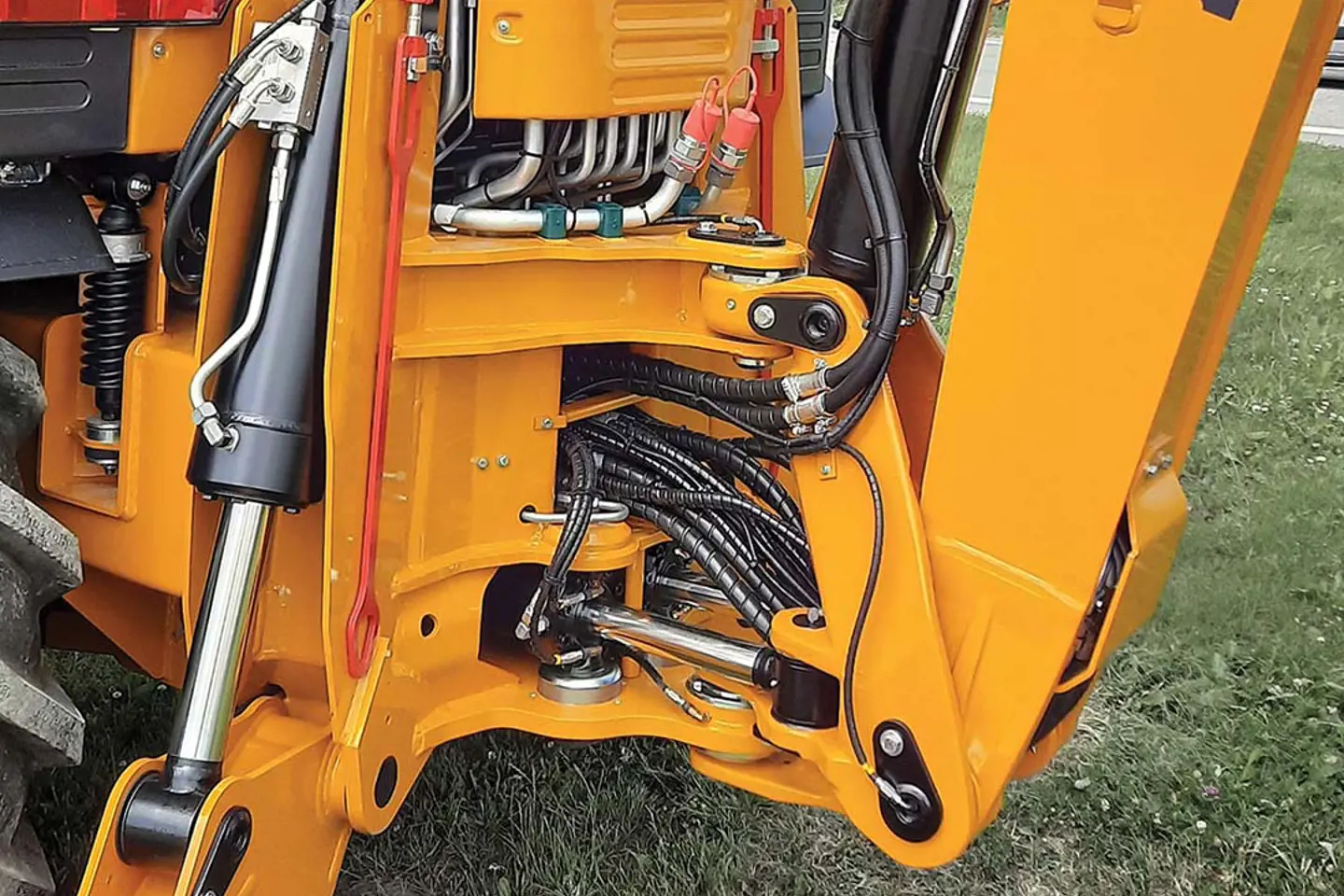

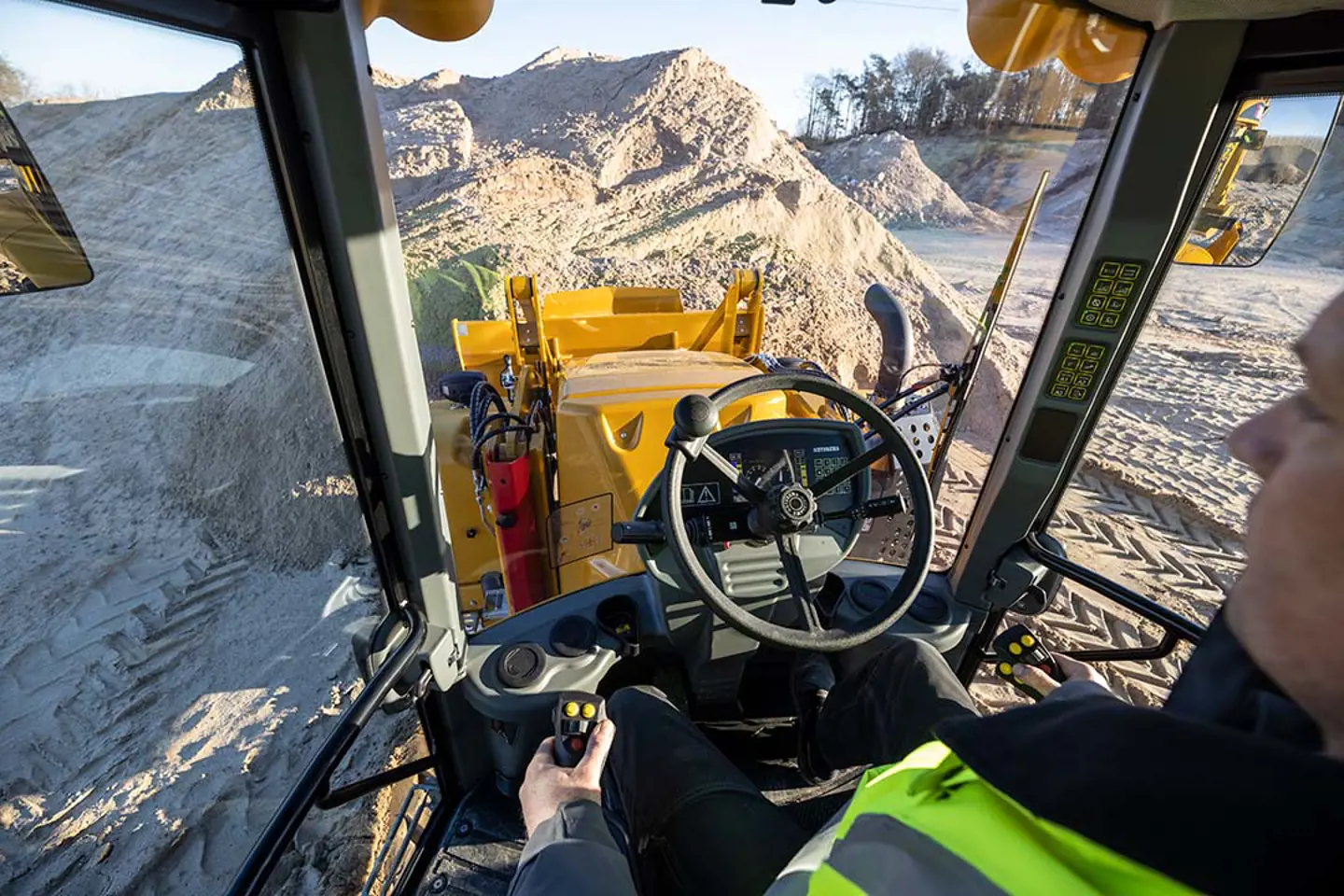

Features 908G

• The 908G model has a 200-degree working range and is ideal for a variety of applications.
• It’s also smaller than the larger models in the range, but still offers impressive performance.
• With a 122 hp engine, it also has more lifting power than the 906G, making it suitable for certain loading scenarios.
• Compared to the 906G and 926G, it doesn’t have sideshifting of the boom, which gives it a slightly smaller working area, but enables it to lift significantly more

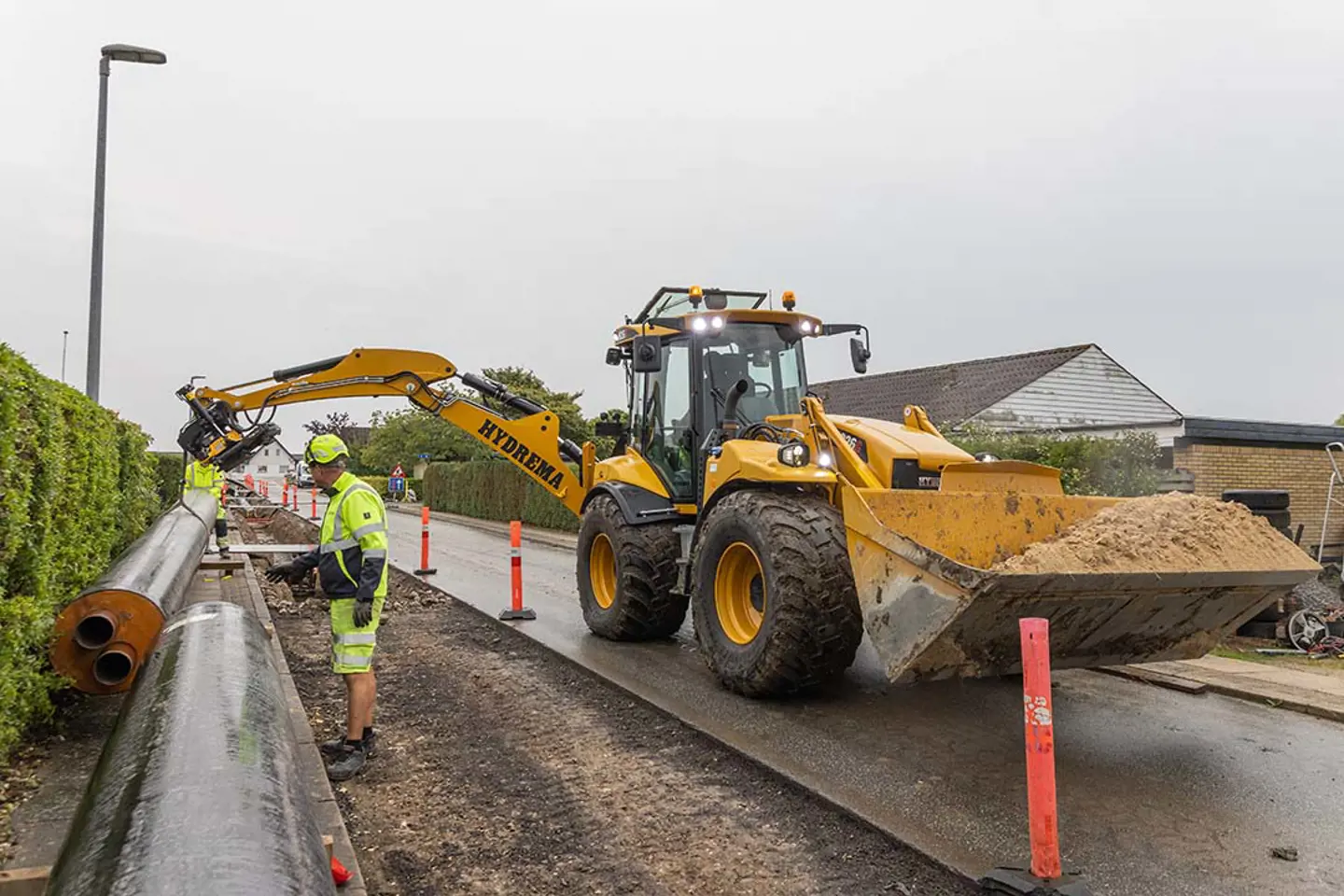

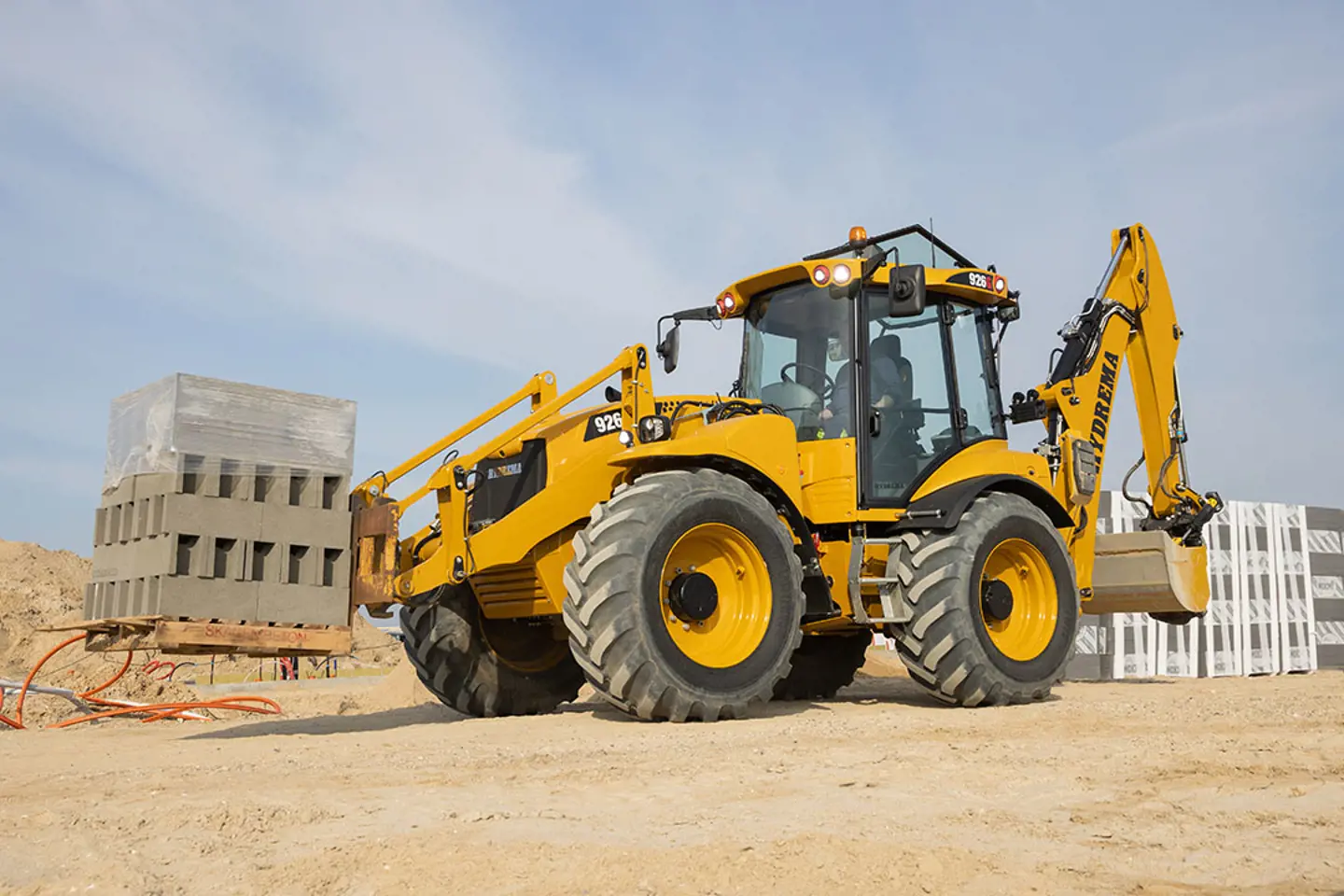

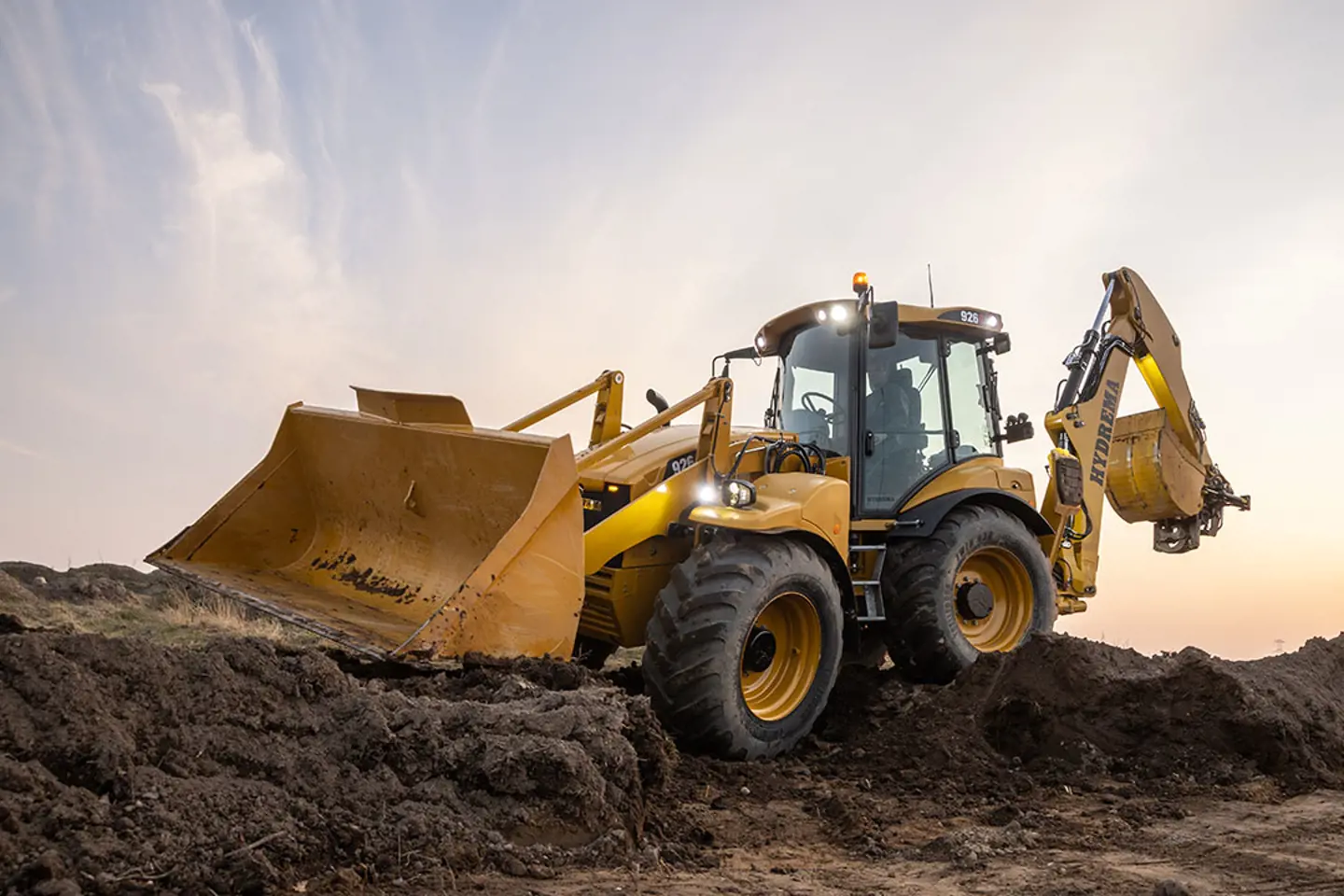

Features 926G

• The 908G model has a 200-degree working range and is ideal for a variety of applications.
• It’s also smaller than the larger models in the range, but still offers impressive performance.
• With a 122 hp engine, it also has more lifting power than the 906G, making it suitable for certain loading scenarios.
• Compared to the 906G and 926G, it doesn’t have sideshifting of the boom, which gives it a slightly smaller working area, but enables it to lift significantly more.

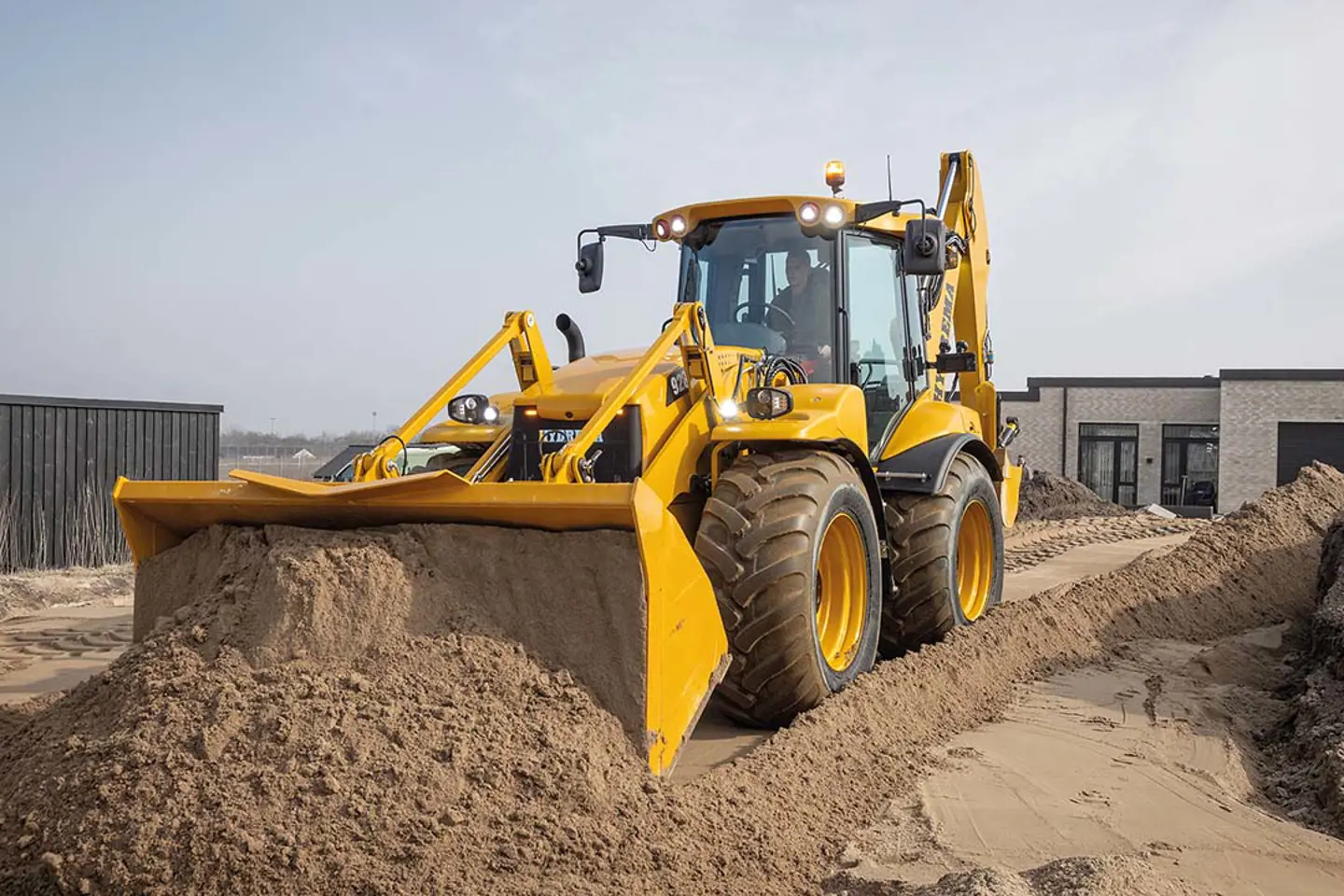

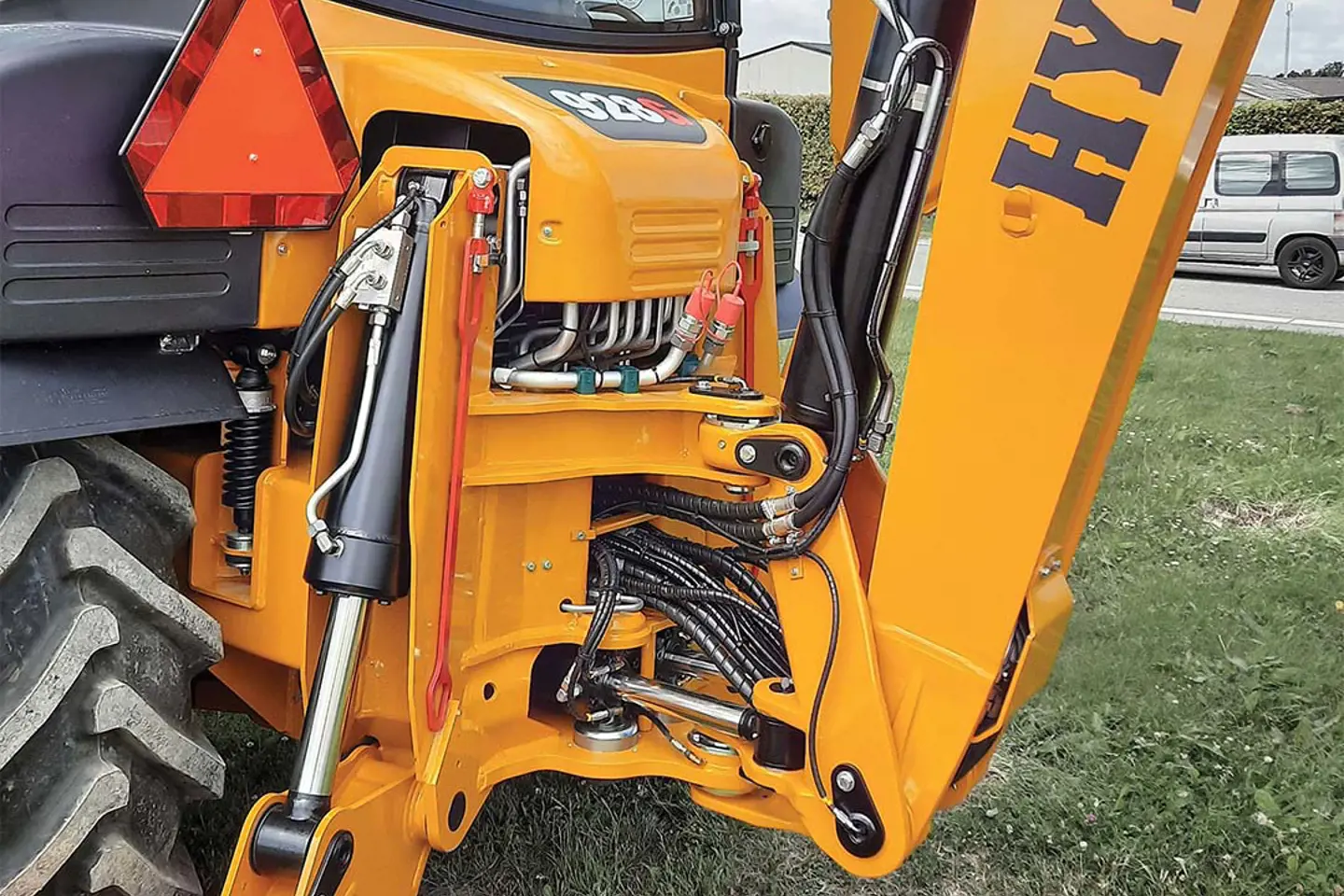

Features 928G

• The 928G model, like the 908G, has a working range of 200 degrees and is larger than the 906G/908G.
• It is equipped with a powerful 147 hp engine.
• Unlike the 906G and 926G, it doesn’t have the sideshift of the boom, which results in a smaller working area, but allows it to lift significantly more.
• This makes it the ideal choice for tasks that require extra capacity and strength.

Hydraulic System

Electronically controlled Double Command with Flow Sharing and Mode Control for all models.
906G/908G: Load sensing system with variable pump. 163 l/min and 240 bar.
926G/928G: Load Sensing system with variable pump. 220 l/min and 240 bar.

Engine

Cummins B4.5 Stage 5 engine with DOC, DPF and SCR catalysts with Ad-Blue additive. 4.5 litre, 16 valve common rail turbo diesel engine with intercooler and electronically variable turbo charger. Can run on biodiesel (HVO).
906G/908G: Max. 122 hp (90 kW) Torque: 470 Nm at 1500 rpm.
926G/928G: Max. 147 hp (108 kW) Torque: 600 Nm at 1500 rpm

Transmission

906G/908G: DANA 6/3 gear fully automatic electronically controlled transmission. Double “kick down”. Torque converter with torque increase. No. of gears: 6 forward 3 reverse. Permanent 4- wheel drive.
926G/928G: ZF WG115, 6-speed, fully-automatic ERGOPOWER Soft-Shift transmission with 100% electronic control. Electronically controlled pressure on each clutch ensures completely smooth gearshift without any loss of tractive effort. 6 forward gears and 3 reverse. Permanent 4-wheel drive.

Chassis

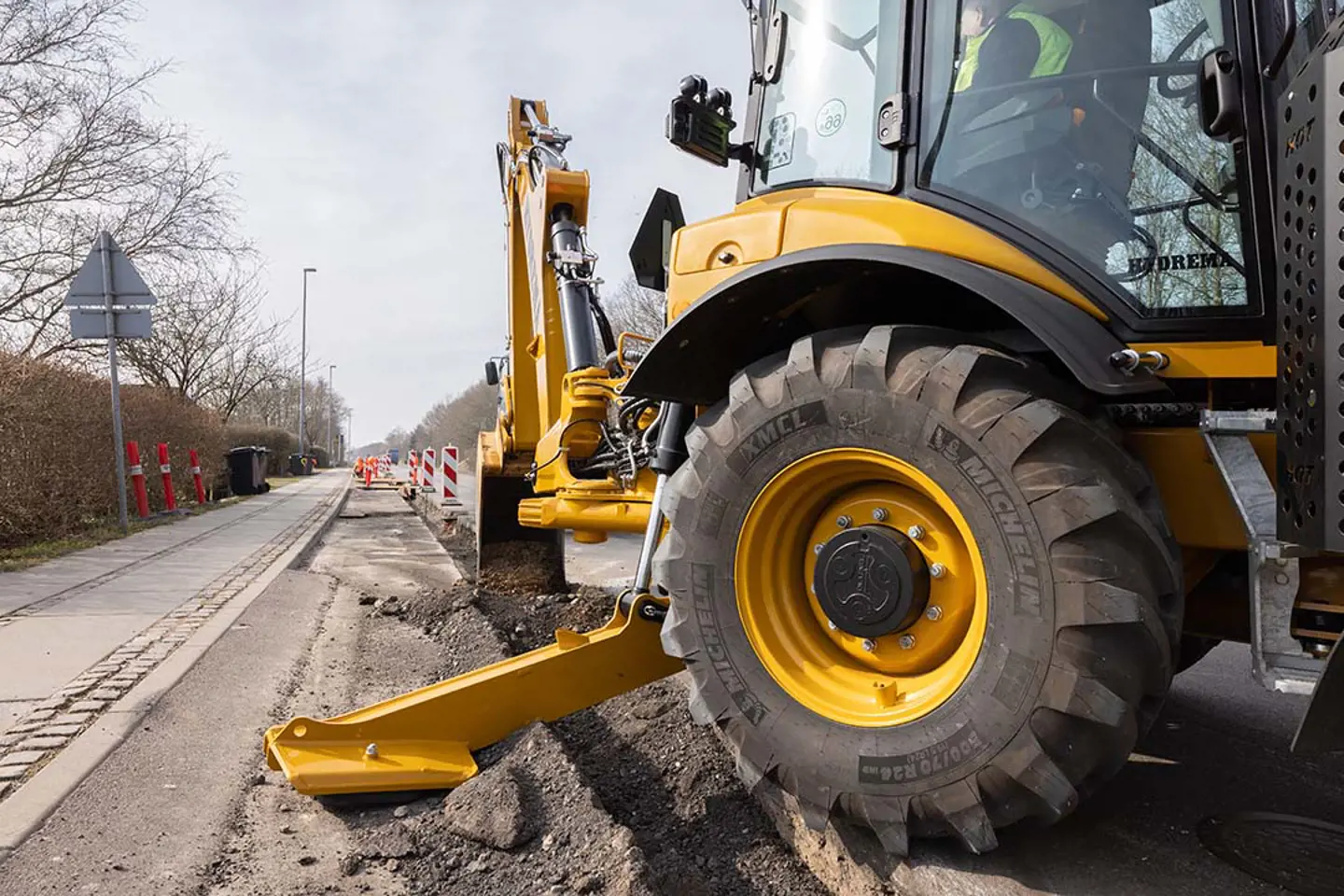

Heavy-duty robot-welded articulated chassis with fixed axles. Pivot joint with pendulum bar and double hydraulic stabilisers with the option of hydraulic locking of the oscillating movement. Oscillating angle: +/- 11°
